Praher 2-way Ball Valve S6 PVC-U
- Compact design
- PTFE or PE ball seating joint
- Double sealed shaft
| Seal materials | EPDM, FPM, PE, PTFE |
|---|---|
| Dimensions | DN10/d16/¾” – DN80/d90/3″ |
| Pressure rates | PN16 |
| Connections | PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket |
| Certificates | EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission |

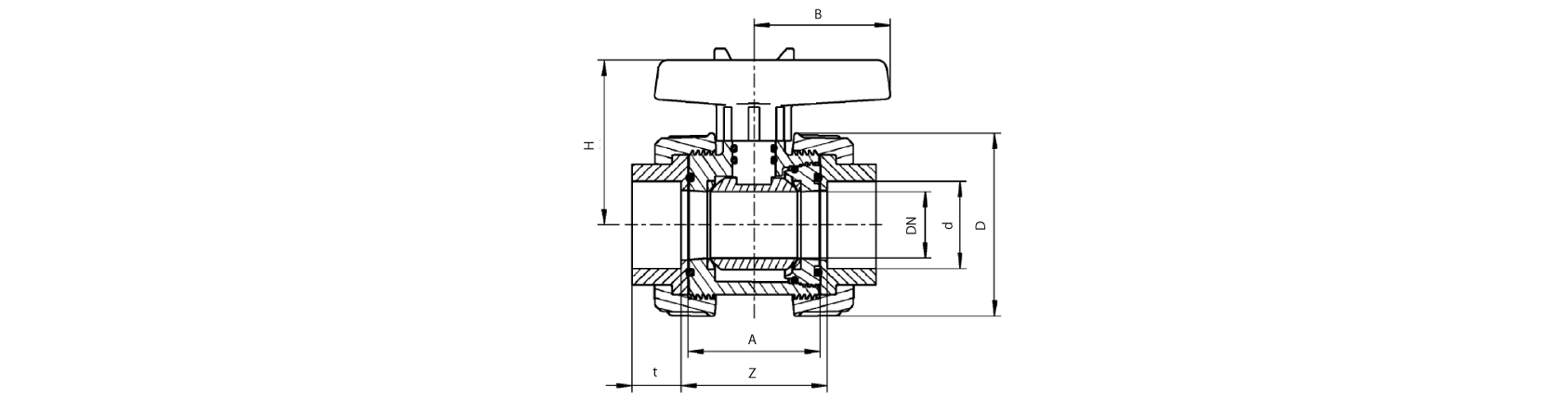

| d | DN | G | A | D | H | B | Z | t |
| 16 | 10 | 3/8″ | 44,5 | 55,5 | 47 | 42,5 | 49,5 | 16,5 |
| 20 | 15 | 1/2″ | 44,5 | 55,5 | 47 | 42,5 | 49,5 | 16,5 |
| 25 | 20 | 3/4″ | 50 | 62 | 53 | 55 | 56 | 19,5 |
| 32 | 25 | 1″ | 52,5 | 70 | 55,5 | 55 | 58,5 | 23 |
| 40 | 32 | 1 1/4″ | 61 | 87 | 76 | 65 | 67,5 | 26,5 |
| 50 | 40 | 1 1/2″ | 77 | 101,5 | 88,5 | 75 | 87 | 31,5 |
| 63 | 50 | 2″ | 87 | 115,3 | 95 | 75 | 99 | 38,5 |
| 75 | 65 | 2 1/2″ | 110 | 144,5 | 126 | 111 | 121,5 | 45 |
| 90 | 80 | 3″ | 163 | 188 | 160 | 133 | 183 | 55,5 |
| 110 | 80 | 4″ | 163 | 188 | 160 | 133 | 176 | 64 |
