Seal materialsEPDM, FPM, PTFE
DimensionsDN10/d16/3/8″ – DN50/d63/2″
Pressure ratesPN16
Connectionsflange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
CertificatesDeclaration of Conformity acc. to Annex VII of the Directive 97/23/EG

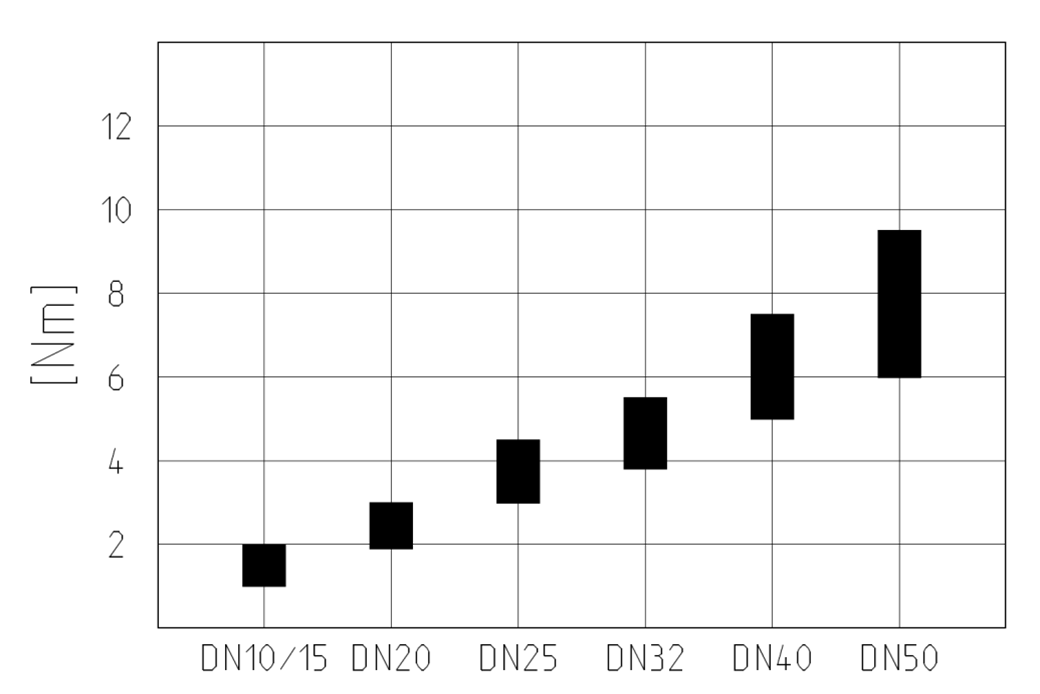

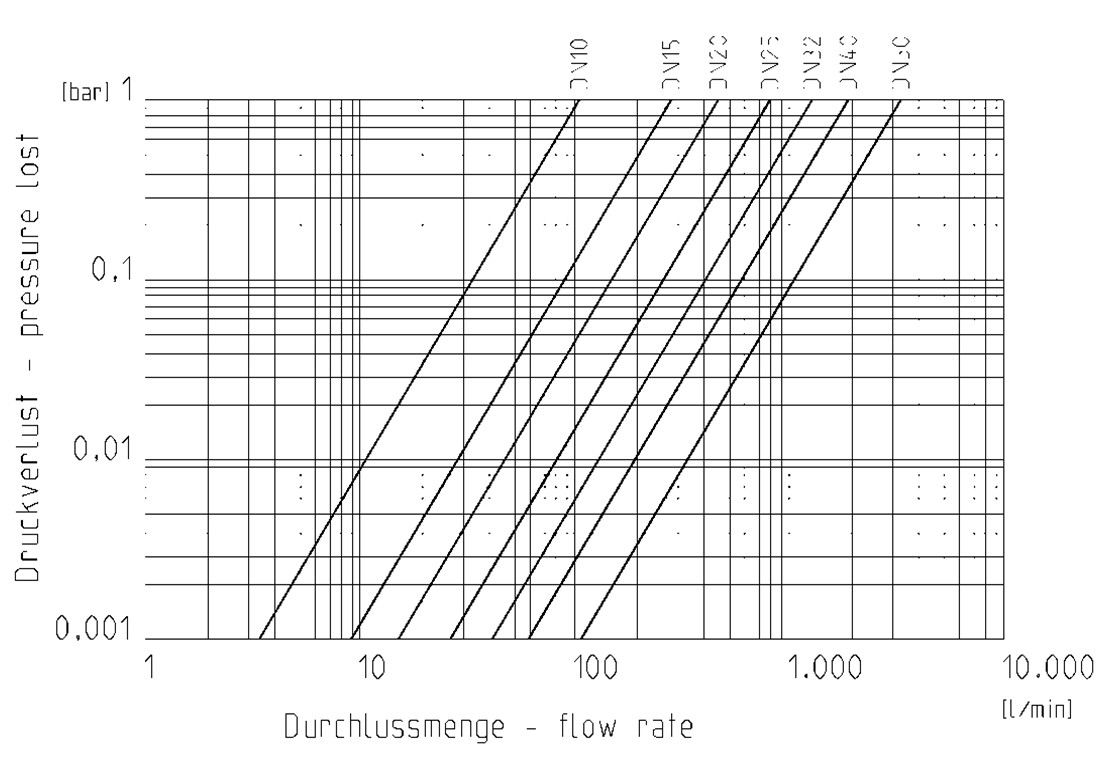

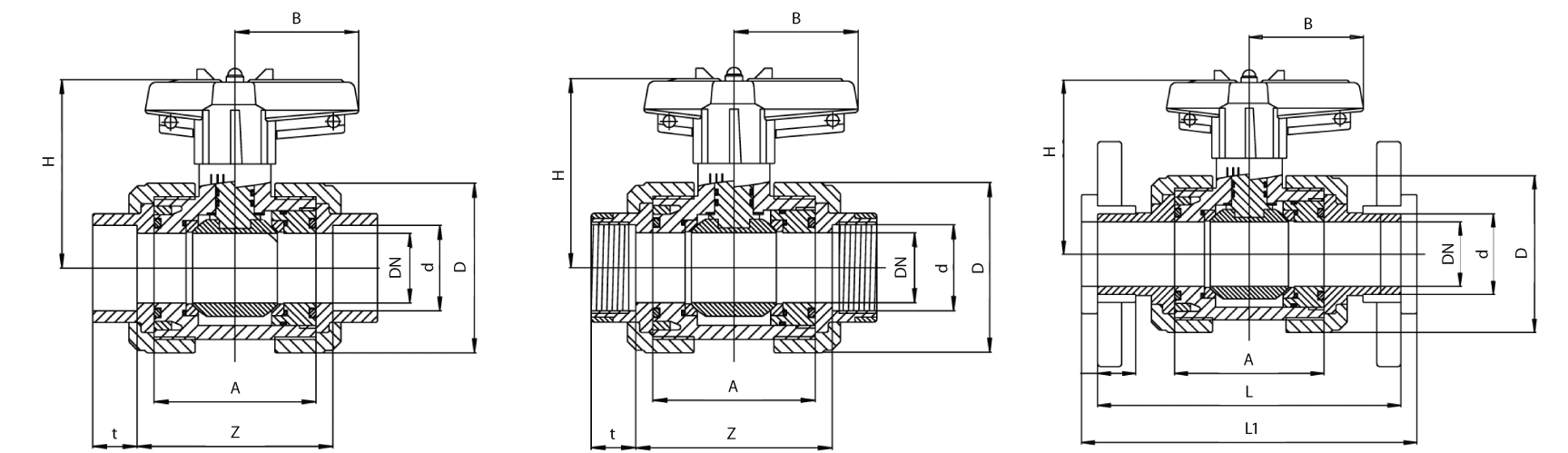

d
DN
G
L
L1
A
D
H
B
Z*
t*
16
10
3/8″
114
120
62
53
72
40
67,5–-71
14,5-–16,5
20
15
½”
124
130
62
53
72
40
67,5–-71
14,5–-16,5
25
20
¾”
144
150
70
63
78,5
51,5
76,5–-79
17–-19,5
32
25
1″
154
160
74
70
81,5
51,5
81–-84
19,5–-22,5
40
32
1¼”
174
180
84
85
100
64
90–-96
22–-26,5
50
40
1½”
194
200
95
101
107,5
73
104–-114
25–-31,5
63
50
2″
224
230
109
121,5
116,5
85
121-–134
29–-38,5
75
65
2½”
284
290
137
155
144
110
148–-162
34,5-–45
90
80
3″
300
310
163
188
163
132
183–-211
38,5–-55,5
110
80
4″
340
350
163
188
163
132
176–-207
44-–64
